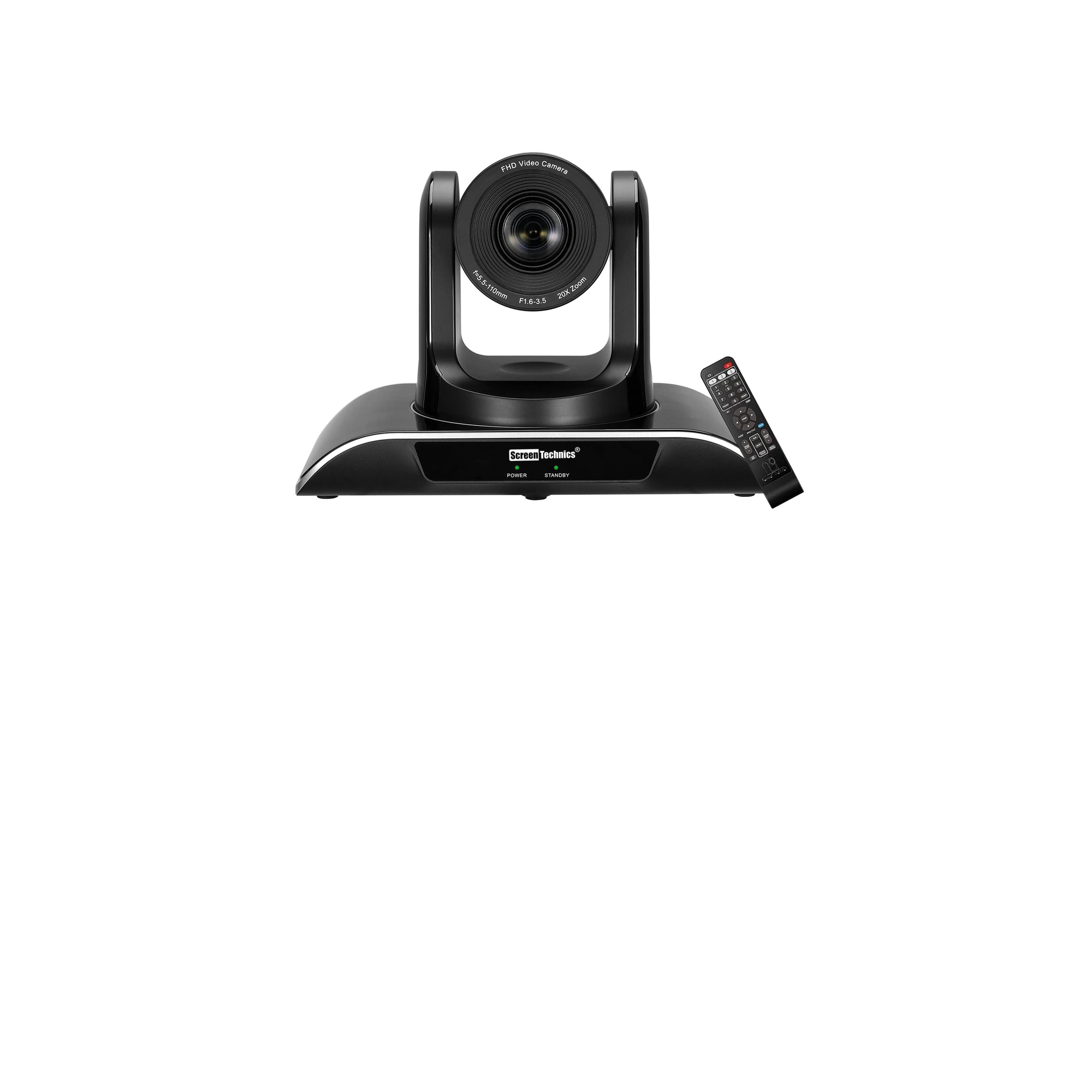

PTZ Camera with AI Auto-Tracking | 20X Optical Zoom | Full HD | Ideal for Live Streaming, Online Teaching & Classroom Recording | USB 3.0 & HDMI
MRP:₹ 60,000.0033% OFF
₹ 40,000.00
Inclusive of all taxes
Description
Powerful 20X Optical Zoom:
Equipped with a 2.1 MP lens, the ST-VCHD20N delivers crystal-clear Full HD 1080p video at 60 fps, capturing every detail with precision — perfect for presentations, lectures, and conferences.
Wide Pan & Tilt Range:
Enjoy flexible coverage with a pan range of 0°–340° and tilt range of 0°–120°, ensuring smooth and comprehensive views of any meeting room, classroom, or studio.
Easy Preset Control:
Effortlessly switch between multiple preset focus points — ideal for seamless discussions, panel sessions, and dynamic live interactions.
Universal Compatibility:
Fully compatible with major video conferencing platforms such as Zoom, Microsoft Teams (Lync), Skype for Business, VoovMeeting, and Cisco WebEx.
Plug-and-Play Simplicity:
Connect instantly via USB + HDMI — no complex installation or additional drivers needed. Just plug in and start your session.
Technical Specification
| Model No. | ST-VCHD20N |
| Image Sensor | 1/3 inch HD Color CMOS |
| Effective Pixel | 2.1 Mega Pixel (16:9) |
| Horizontal Resolution | 1080P60/30, 720P30/25 |
| Zoom | 20x Optical Zoom |
| Minimum Luminance | 0.5 Lux at F2.0 |
| Horizontal Angle | Focal Length f=5.0mm～50.0mm, F1.8(W)～2.1(T), Near-end 55.5°～Far-end 3.0° |
| Gain Control | Auto |
| Focus | Auto |
| White Balance | Auto |
| SNR Ratio | ≥50dB |
| Shutter Speed | 8 to 1/10000s (Auto) |
| Preset Position | IR Remote Control Supports 9 Presets, 256 Presets |
| Pan/Tilt Range | Pan: ±175° (Max Speed 80°/S), Tilt: -35°~+55° (Max Speed 60°/S) |
| Video Output | USB 3.0, HDMI, RS-232, RS485 |
| Control Terminal | USB, HDMI, RS-232, RS485 |
| Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
| Noise Reduction | 2D/3D |
| Work Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Baud Rate | 38400/9600bps |
| Installation | Desktop, Tripod, Wall Mount & Ceiling Mount |
| Power Supply | DC 12V / 2A |
| Power Consumption | 12W |
| Net Weight / Gross Weight | 1.5kg / 2.95kg |
| Dimension | (L×W×H) 26 × 17.5 × 18 cm / 29.6 × 25.5 × 21.8 cm (Before / After Packing) |
| Warranty | One Year Carry-in Warranty |
| Accessories | DC 12V Power Adaptor, IR Remote Control, Manual, USB 2.0 Cable, Wireless Dongle, Ceiling Brackets & Screws |
